52 17 026 Removing and installing/replacing pressure distributor for active driver's seat

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove SEAT COVER WITH PADDING FOR DRIVER'S SEAT

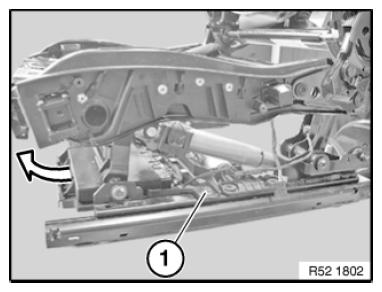

Unscrew left and right nuts (1).

Remove carrier plate towards front from seat mechanism.

Fig 1: Removing Carrier Plate Towards Front From Seat Mechanism

G08573530

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Pressure distributor and pneumatic pockets form a single unit and can only be replaced as a single component.

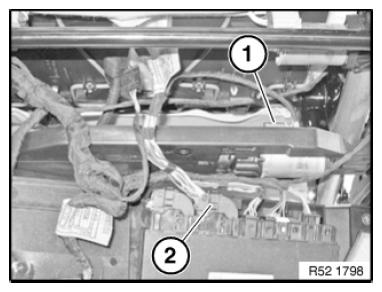

Unlock plug connection (1) on drive and disconnect.

Unlock plug connection (2) on control unit and disconnect.

Fig 2: Identifying Drive And Control Unit Plug Connections

G08573531

Courtesy of BMW OF NORTH AMERICA, INC.

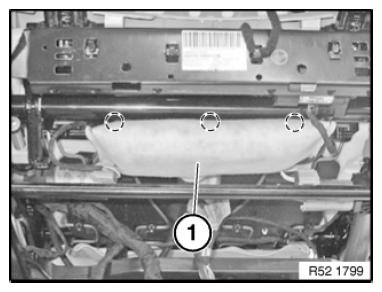

Unclip pressure distributor (1) in marked area.

Installation:

Replace faulty clips.

Fig 3: Identifying Pressure Distributor

G08573532

Courtesy of BMW OF NORTH AMERICA, INC.

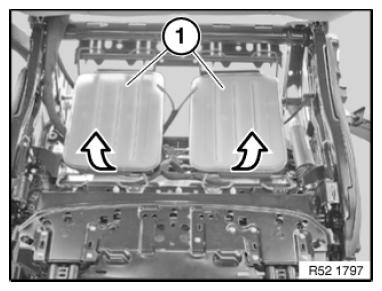

Unclip pneumatic pockets (1) with supports on left and right from flex mat.

Feed pneumatic pockets (1) through flex mat towards bottom.

Fig 4: Removing Pneumatic Pockets

G08573533

Courtesy of BMW OF NORTH AMERICA, INC.

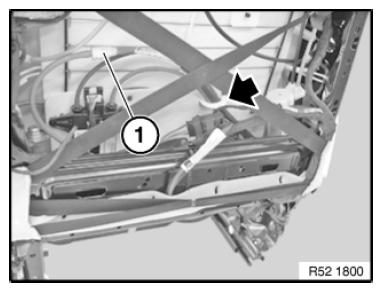

Open quick connector (1).

Feed out hose through fleece mat and backrest frame.

Fig 5: Locating Hose Clamp

G08573534

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Carry out operational check.
