61 31 203 Replacing switch combination for seat adjustment

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove COVER FROM FRONT SEAT

Release screws (1).

Raise switch combination for seat adjustment (2).

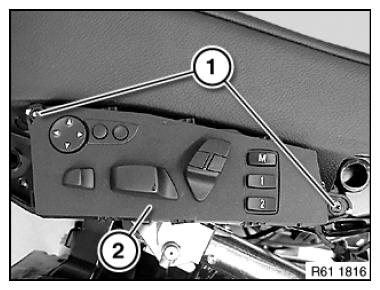

Fig 1: Identifying Switch Combination For Seat Adjustment And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

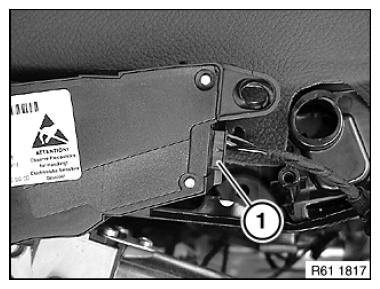

Fig 2: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
