24 13 060 Replacing shaft seal for parking lock shaft (GA7AHSCD)

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: After completion of work, check TRANSMISSION OIL LEVEL .
Use only approved transmission oil: Dexron VI automatic transmission fluid (GM)
Failure to comply with this requirement will result in serious damage to the automatic transmission!

Necessary preliminary tasks:

Remove TRANSMISSION
Remove PARKING LOCK CONTROL UNIT (DSM)

Screw in special tool 24 5 367 until it is firmly connected with radial shaft seal.

Fig 1: Identifying Special Tool (24 5 367) Screwing Position

Courtesy of BMW OF NORTH AMERICA, INC.

Screw special tool 24 5 362 onto special tool 24 5 367 and tighten down.

This pulls radial shaft seal out of transmission housing.

Fig 2: Screwing Special Tool (24 5 362) Onto Special Tool (24 5 367)

Courtesy of BMW OF NORTH AMERICA, INC.

Oil sealing lip on radial shaft seal.

Drive radial shaft seal fully home using special tool 24 0 350 and plastic hammer.

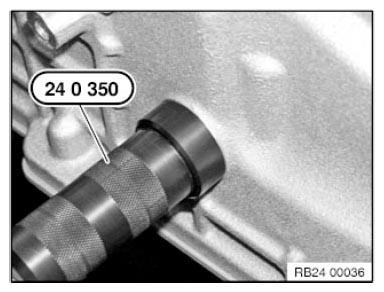

Fig 3: Installing Radial Shaft Seal Using Special Tool (24 0 350)

Courtesy of BMW OF NORTH AMERICA, INC.
