51 12 156 Removing and installing rear bumper panel

Necessary preliminary tasks:

• Remove BUMPER PANEL COVER

Partially detach REAR WHEEL ARCH TRIM (1)  (see picture).

Unfasten screws (2 and 3).

Fig 1: Identifying Rear Wheel Arch Trim And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

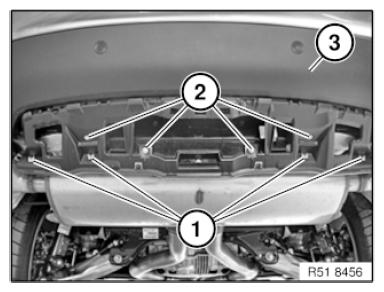

Release screws (1 and 2) on lower bumper trim section (3).

Fig 2: Identifying Lower Bumper Trim Section And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

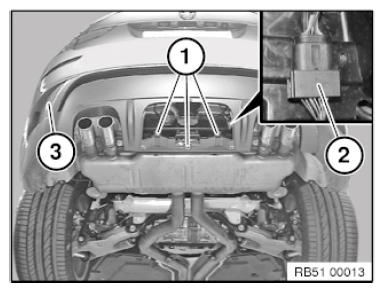

Only with M bumper panel:

Undo screws (1) on bumper panel (3).

Unfasten plug connection (2) and disconnect.

Fig 3: Identifying Bumper Panel, Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Pull bumper panel (1) with a 2nd person helping on left and right in direction of arrow out of catches (2).

Installation note:

Bumper panel (1) must be correctly fed in at latch mechanisms (2).

Fig 4: Identifying Bumper Panel And Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.

With the assistance of another person, pull bumper panel (1) back slightly and disconnect plug connection (2).

Remove bumper panel (1) in direction of arrow.

Fig 5: Removing Bumper Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Catches in areas (A and B) and guide (1) on trim (2) must not be damaged.
