11 22 000 Removing and installing/replacing flywheel (N63 hybrid)

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 9 260

WARNING: High-voltage system - danger to life!

Necessary preliminary tasks:

Remove AUTOMATIC TRANSMISSION

Secure flywheel (1) with special tool 11 9 260 .

Illustration shows N63.

Fig 1: Securing Flywheel Using Special Tool (11 9 260)

Courtesy of BMW OF NORTH AMERICA, INC.

Release flywheel screws in area (1).

Remove flywheel (2).

Installation:

Clean threads on flywheel screws in crankshaft.

Flywheel (2) is secured with an alignment pin.

Fit flywheel (2).

Fit new flywheel screws.

Tightening torque 11 22 3AZ .

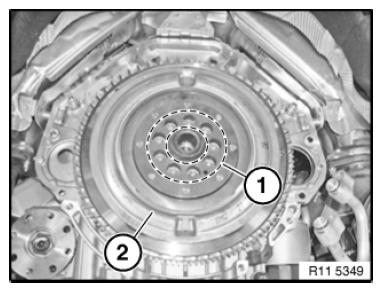

Fig 2: Identifying Flywheel And Screw Area

Courtesy of BMW OF NORTH AMERICA, INC.
