61 11... Remove and install/replace the HSD cable for the Top View camera in the exterior mirror, left or right

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Read and comply with notes on HANDLING WIRING HARNESSES AND CABLES .

NOTE: HSD cable length: 380 mm

Necessary preliminary tasks:

REMOVE PROTECTIVE CAP ON LEFT OR RIGHT EXTERIOR MIRROR

REMOVE EXTERIOR MIRROR FROM LEFT OR RIGHT FRONT DOOR

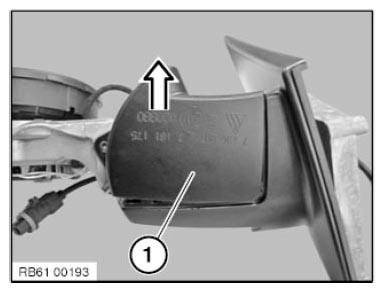

Lever out the cover (1) in direction of arrow.

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

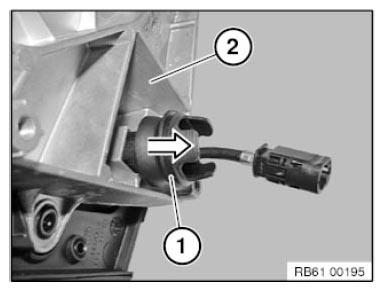

Pull the rubber grommet including internal connector (1) out of the mirror housing (2) in direction of arrow.

Fig 2: Removing Rubber Grommet Including Internal Connector From Mirror Housing

Courtesy of BMW OF NORTH AMERICA, INC.

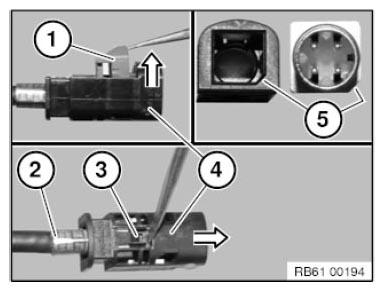

Unlock the lock (1) in direction of arrow with suitable tool.

IMPORTANT: Risk of damage!

Unlock the lock (3) carefully with a suitable tool. Pull the connector housing (4) off the HSD cable (2) in direction of arrow.

Installation note:

Pay attention to encoding (5)!

Fig 3: Pulling Connector Housing

Courtesy of BMW OF NORTH AMERICA, INC.

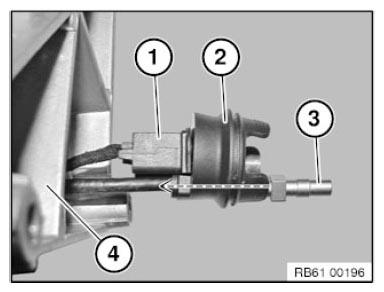

Feed the HSD cable (3) out of the rubber grommet (2).

NOTE: Leave the rubber grommet (2) on the connector (1).

Feed the HSD cable (3) out of the mirror housing (4).

Fig 4: Identifying HSD Cable, Rubber Grommet, Connector And Mirror Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

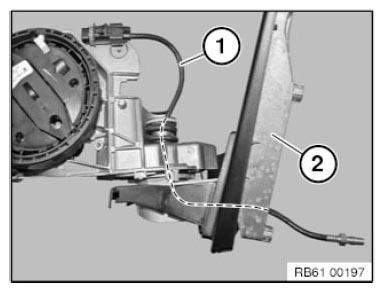

The HSD cable (1) is routed in the mirror housing (2) as shown.

Fig 5: Identifying Mirror Housing And HSD Cable Route

Courtesy of BMW OF NORTH AMERICA, INC.
