51 16 000 Removing and installing or replacing mirror on left or right front door

WARNING: This page is about a different car, the 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Necessary preliminary tasks:

Remove COVER ON DOOR HANDLE

Release screw (2).

Tightening torque, 51 41 1AZ.

Partially unclip door trim panel (1) in area of rear view mirror with special tool 00 9 317 .

Partially loosen door window frame cover (3).

Press rubber window seal (4) to one side.

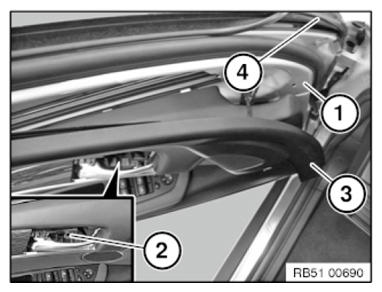

Fig 1: Identifying Door Trim Panel, Door Window Frame Cover, Rubber Window Seal And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

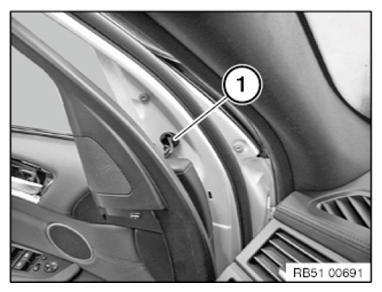

Fig 2: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Secure mirror against falling off.

Press rubber guide (2) to one side and release screws (3).

Tightening torque 51 16 1AZ .

Installation note:

Make sure grommet for plug connection (1) is correctly seated

Fig 3: Identifying Plug Connection, Rubber Guide And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Due to the thread-tapping screws, the tightening torque of the new mirror is increased by 2 Nm.

Remove mirror (1) outwards.

Installation note:

Run a function check.

Fig 4: Removing Mirror

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Sound insulation (1) must not be damaged.

Fig 5: Identifying Sound Insulation

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

MODIFY mirror glass
Modify PROTECTIVE CAP ON EXTERIOR MIRROR
