51 16 041 Removing and installing/replacing cover cap on left or right exterior mirror

WARNING: This page is about a different car, the 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove RETAINING RING ON DOOR MIRROR

Fold outside mirror (1) forwards.

Unfasten screws (2).

Fig 1: Identifying Outside Mirror And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off cover cap (1) towards rear.

Installation:

Make sure cover cap (1) is correctly seated in areas (A and B).

Fig 2: Identifying Outside Mirror Cover Cap Seated Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Fold exterior mirror (1) back.

Lift cover cap (2) downwards over catch (3).

Feed cover cap (2) in direction of arrow out of exterior mirror (1).

NOTE: Cover cap (2) must be bent slightly during removal.

Fig 3: Lifting Protective Cap From Latch Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

Version with exterior mirror camera (1) only:

Unfasten plug connection (2) and disconnect.

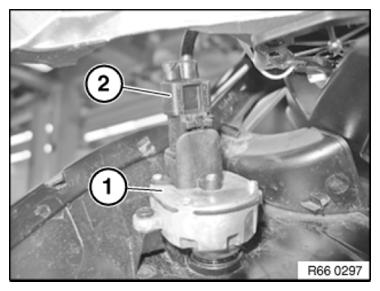

Fig 4: Identifying Exterior Mirror Camera And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
