52 24 420 Replacing backrest shell for rear seat

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove ARMREST FOR REAR SEAT BACKREST
Remove GUIDE SLEEVES FOR HEAD RESTRAINTS

NOTE: Removal operation is shown on left side.
Carry out removal on right side in the same way.

Disconnect all retainers.

Lever out cover welt in marked area with plastic wedge.

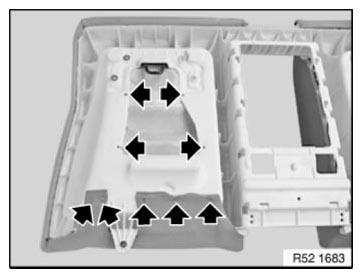

Fig 1: Locating Retainers

G08473072

Courtesy of BMW OF NORTH AMERICA, INC.

Fold back cover in upper area.

Disconnect retainers underneath.

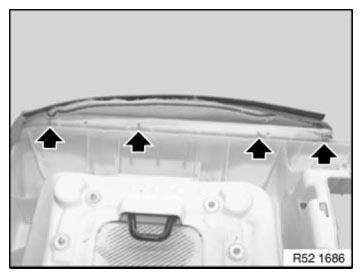

Fig 2: Locating Retainers Underneath

G08473073

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Remove all remnants of retainers.

Bend new retainers to shape with special tool 52 0 050 .

Disengage cover from backrest frame.

Remove cover with padding from backrest shell.

Fig 3: Removing Cover And Padding From Backrest Shell

G08473074

Courtesy of BMW OF NORTH AMERICA, INC.
