52 24 030 Removing and installing complete armrest for rear seat backrest

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove MIDDLE HEAD RESTRAINT

Press center armrest cover upwards and remove towards front.

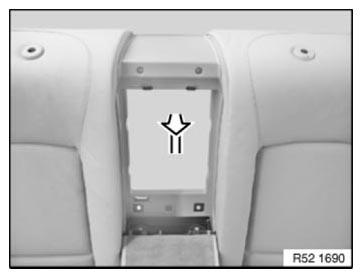

Fig 1: Pressing Centre Armrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure cover is correctly seated in backrest frame.

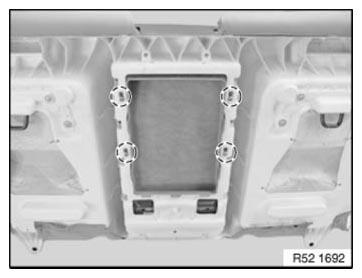

Fig 2: Identifying Backrest Frame Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque: see 4AZ in 52 24 REAR SEAT, MANUAL

Remove armrest towards front.

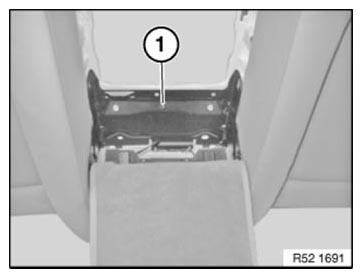

Fig 3: Identifying Armrest Screw

Courtesy of BMW OF NORTH AMERICA, INC.
