52 24... Removing and installing/replacing all guide sleeves for rear head restraints
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove HEAD RESTRAINT .

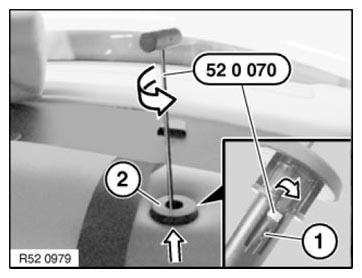

Insert special tool 52 0 070 into guide hole of sleeve (2) up to upper area of retaining lug.
Feed release tongue of special tool into rear gap on retaining lug (1).
Turn tool to release sleeve (2) and pull out by lifting upwards.
Installation:
Replace faulty sleeves.
