52 25 380 Removing and installing/replacing left or right rear head restraint mount

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear HEAD RESTRAINT
Remove REAR PANEL on rear seat backrest
Remove BACKREST COVER in upper area

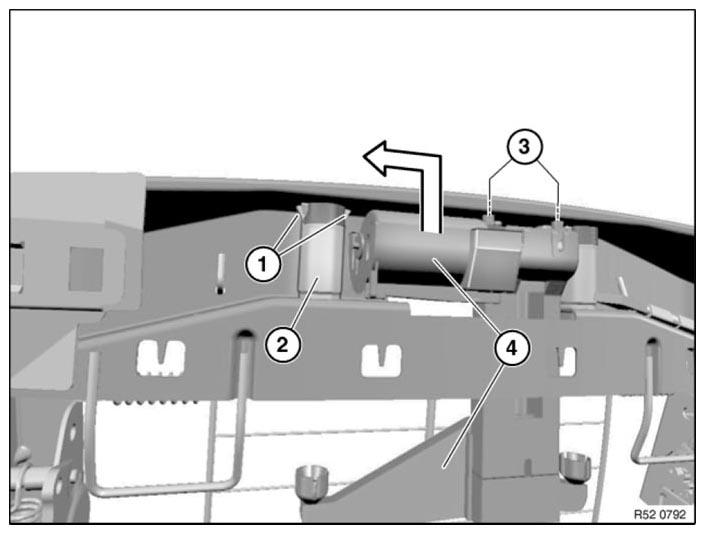

Fig 1: Removing Head Restraint Mount
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Move head restraint fully downwards (otherwise removal of head restraint guide is not possible!).
Disconnect plug connection.
Unlock catches (1) and remove guide (2) on left and right towards top.
Release screws (3).

Tightening torque: see 14AZ in 67 31 DRIVE, SEAT ADJUSTMENT

Tilt head restraint mount (4) in direction of arrow and feed out towards top.

NOTE:

Carry out FUNCTION CHECK WITH ADAPTER CABLE
