52 25... Removing and installing/replacing rear panel on rear seat backrest
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For purposes of clarity, the following operations are shown in the released state.

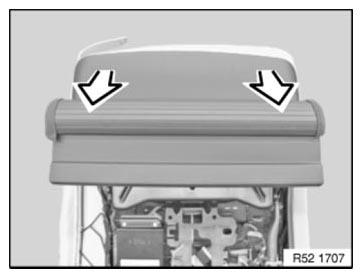

Detach cover (1) from Velcro fastener.

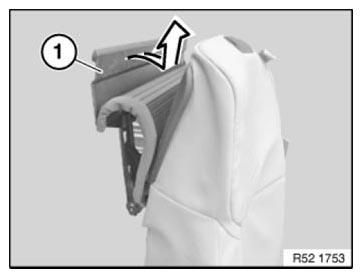

Pull cover (1) upwards out of guide from four-bar lever.
Installation note:
Make sure cover guide is correctly seated on four-bar lever.

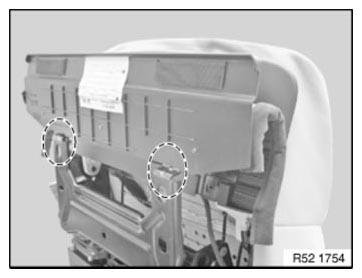

Unclip rear panel at top left and right and remove in upward direction.
Installation note:

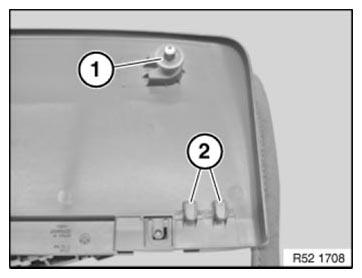

If necessary, replace faulty clips.
Make sure guide (2) is correctly seated in backrest frame.
