52 14 198 Removing and installing or replacing rear panel on left or right front seat backrest

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

With rear passenger compartment entertainment option only:
Remove REAR PASSENGER COMPARTMENT MONITOR COVER

Operation is shown on the left seat. When removing from the right seat, swap the pull and striking sides accordingly.

Grip between rear panel and backrest cover on tunnel side until clamp can be felt (do not pull).
At same time, firmly punch towards middle of seat on inside (tunnel side) at top.
Upper clamps spring out of seat guide.
Pull rear panel up out of lower guides.

Fig 1: Pulling Rear Panel From Lower Guides
Courtesy of BMW OF NORTH AMERICA, INC.

With ambient light option only:

Unlock plug connection (1) for ambient light and disconnect.

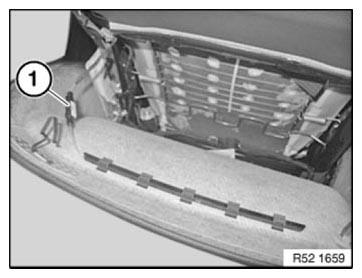

Fig 2: Identifying Ambient Light Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Rear panel and clamps must not be damaged.

Upper clamps
Lower clamps

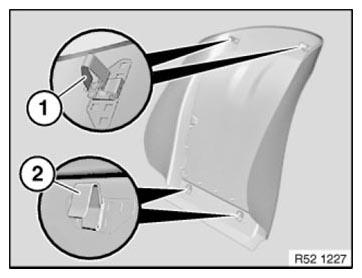

Fig 3: Identifying Rear Panel Upper And Lower Clamps
Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

Remove AMBIENT LIGHT
