52 14 208 Removing and installing/replacing left or right rear monitor trim

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Swing rear monitor (1) as pictured up into uppermost position.

Unfasten screws (2).

Pull rear monitor trim (3) forwards in direction of arrow and snap out in downward direction.

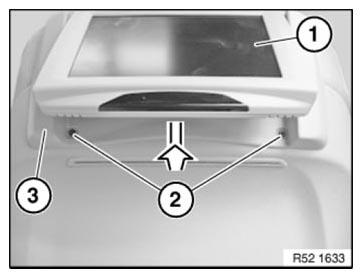

Fig 1: Pulling Rear Monitor Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Retaining lugs (1) on rear monitor trim (2) must be correctly seated in associated guides.

Retaining lugs (1) must not be damaged.

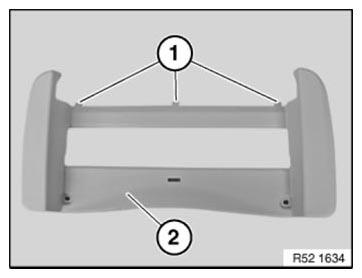

Fig 2: Identifying Rear Monitor Trim And Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.
