52 14 207 Removing and installing ambient light
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove rear panel on seat backrest. See REAR PANEL ON LEFT OR RIGHT FRONT SEAT BACKREST and UPPER REAR PANEL ON LEFT OR RIGHT FRONT SEAT BACKREST .
NOTE:
The procedure for fitting the ambient light may differ, depending on the equipment specification.

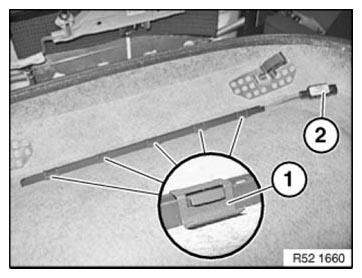

Version 1:
Release shaft clamping rings (1).
Detach plug (2) from light guide.
Installation note:
Make sure plug is correctly engaged on light guide.
Remove ambient light.

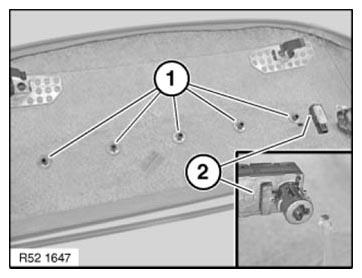

Version 2:
Loosen clamps (1).
Detach plug (2) from light guide.
Installation note:
Make sure plug is correctly engaged on light guide.
Remove ambient light.
