13..... Removing intake port on right and left (N74)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove left and right INTAKE FILTER HOUSINGS
- Remove TRANSVERSE REINFORCEMENT

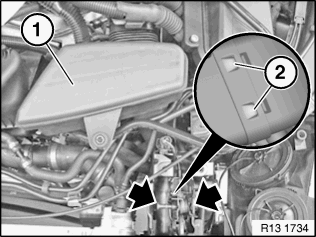

Picture describes the left side, the procedure for the right side is identical.
Press in catches (2) left and right on intake port.
Feed out intake duct (1) towards top.
