51 24 133 Removing and installing/replacing Automatic Soft Close drive on rear lid (Automatic Soft Closing)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TRIM FOR REAR LID

Disconnect plug connection (1).

Release screws (2) and feed out drive (3).

Tightening torque 51 24 4AZ .

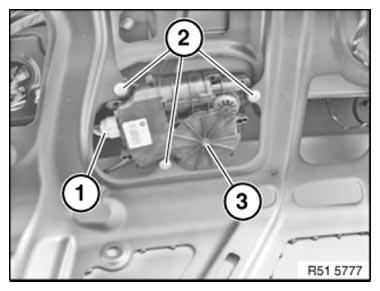

Fig 1: Identifying Plug Connection, Drive And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Feed Bowden cable out of REAR LID LOCK .

Installation note:

Make sure Bowden cable (1) is correctly positioned in rear lid.

Lay Bowden cable (1) without kinks.

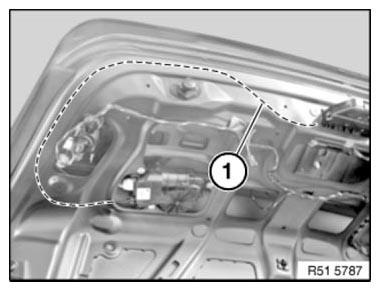

Fig 2: Identifying Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.
