51 49 000 Removing and installing or replacing trim for rear lid

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove LUGGAGE COMPARTMENT LIGHT
Remove SWITCH FOR AUTOMATIC REAR LID ACTUATION

Additionally on US vehicles:

Feed out rear lid emergency release mechanism

Release screws (1).

Open tool box (2), disengage retaining strap and feed out tool box (2).

Release expander rivets at marked points.

Remove panel for rear lid (3).

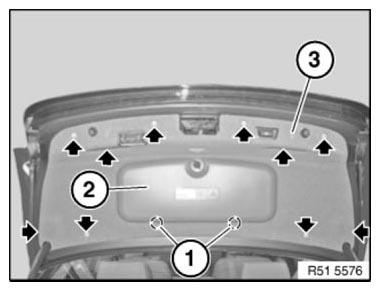

Fig 1: Locating Rear Lid Screws

Courtesy of BMW OF NORTH AMERICA, INC.
