51 24 100 Removing and installing/replacing rear lid lock

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove PANEL FOR REAR LID

Unlock plug connections (1) and disconnect.

Release screws.

Tightening torque 51 24 01AZ .

Feed out rear lid lock.

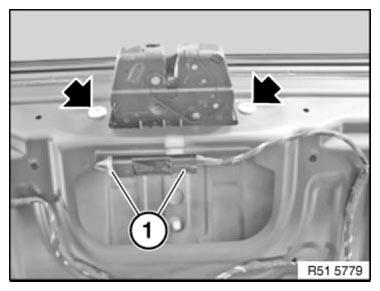

Fig 1: Identifying Plug Connections Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip Bowden cable sleeve (1).

Feed out Bowden cable nipple in direction of arrow.

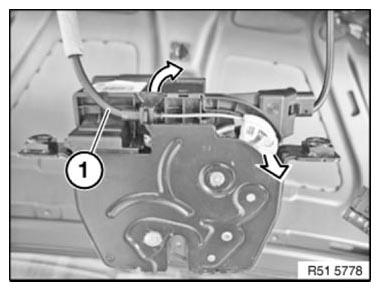

Fig 2: Feeding Out Bowden Cable Nipple

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Perform function check with rear lid open.
