51 43 070 Removing and installing/replacing side trim panel, footwell, on A-pillar, left

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Necessary preliminary tasks:

Remove FRONT LEFT INSIDE DOOR SILL COVER STRIP
Remove trim panel for pedal mechanism. See TRIM PANEL (ECE ONLY) or TRIM PANEL (US ONLY) .

Release screw (1).

Release screw (2).

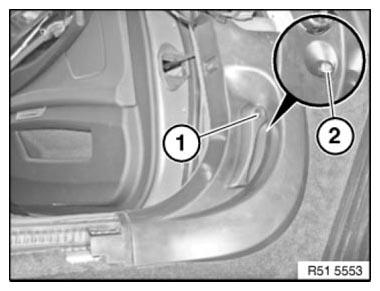

Fig 1: Identifying Trim Panel Screws

G08472166

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully lever out A-pillar trim panel (2) using special tool 00 9 317 .

Disconnect plug connection behind.

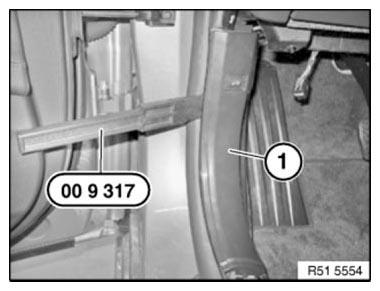

Fig 2: Removing A-Pillar Trim Panel Using Special Tool (00 9 317)

G08472167

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure A-pillar trim panel (3) is correctly seated.

If necessary, replace both clips (1) and clamp (2).

Fig 3: Identifying A-Pillar Trim Panel, Clips And Clamp

G08472168

Courtesy of BMW OF NORTH AMERICA, INC.
