51 44 011 Removing and installing/replacing headlining (version with slide/tilt sunroof)

Necessary preliminary tasks:

• Open slide/tilt sunroof lid at front
• Remove BOTH TRIM PANELS FOR ROOF PILLAR AT FRONT  (A-pillar)
• Remove BOTH TRIM PANELS FOR DOOR POST AT TOP  (B-pillar)
• Remove BOTH TRIM PANELS FOR REAR ROOF PILLAR  (C-pillar)
• Remove INTERIOR ROOF LIGHT
• Remove MIRROR
• Remove MIRROR LIGHT
• Remove BOTH SUN VISORS AND COUNTER SUPPORTS
• Remove ROOF SWITCH CLUSTER
• Remove all grab handles. See FRONT GRAB HANDLE  and REAR LEFT/RIGHT GRAB HANDLE .
• If necessary, remove MAKE-UP MIRROR
• If necessary, remove REAR CABIN A/C FRESH-AIR GRILLE
• Remove edge protection of all doors at headlining. See EDGE PROTECTION FOR LEFT/RIGHT REAR DOOR  and EDGE PROTECTION FOR LEFT/RIGHT FRONT DOOR .

Only necessary for complete removal headlining:

• Remove FRONT PASSENGER SEAT

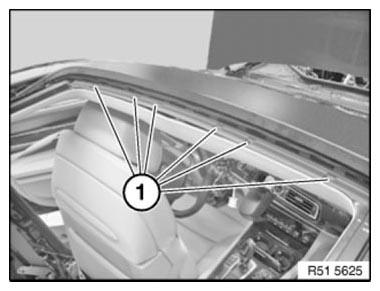

Release screws (1).

Fig 1: Identifying Sunroof Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Brake light area:

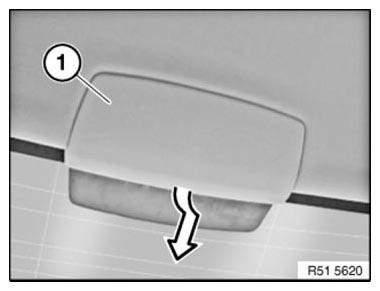

Unclip trim (1).

Fig 2: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Release clamps (1).

Fig 3: Locating Headlining Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Interior roof light area:

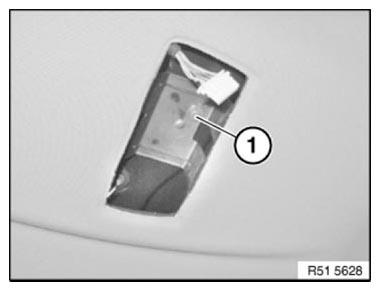

Release screw (1).

Fig 4: Identifying Interior Roof Light Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Switch cluster area:

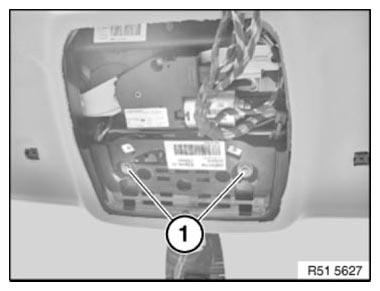

Release screws (1).

Fig 5: Identifying Switch Cluster Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Make-up mirror/rear cabin A/C fresh-air grille area:

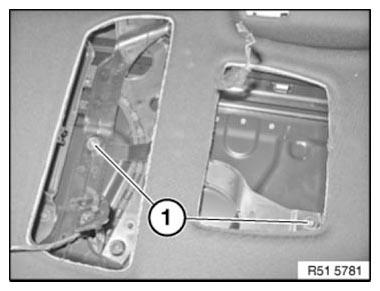

Release screws (1).

Fig 6: Identifying Mirror/Rear Cabin A/C Fresh-Air Grille Screws

Courtesy of BMW OF NORTH AMERICA, INC.

• Move backrest of driver's seat to max. rear position.

Only if front passenger seat is not removed:

• Move backrest of front passenger seat to max. rear position.

Support headlining (1) at front.

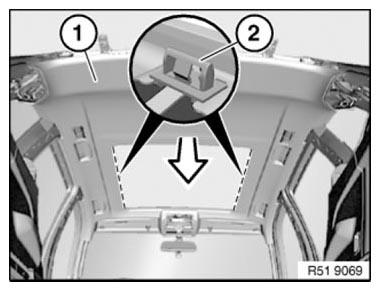

Unclip headlining (1) in marked side area in downward direction (2).

Carefully pull headlining (1) forward until headlining (1) is fed out of remaining clips (2).

Pull down headlining (1).

Installation note:

Unclip rear clips (2) from roof frame.

If necessary, replace faulty clips (2).

Fig 7: Pulling Headlining

Courtesy of BMW OF NORTH AMERICA, INC.

Only necessary for complete removal of headlining:

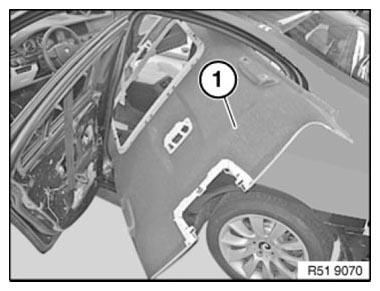

Feed headlining (1) out through rear door on driver's side.

Fig 8: Identifying Headlining

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Installation sequence:

1. Snap headlining at rear into clip
2. Screw down front headlining
3. Screw down rear headlining
4. Install grab handles at front first, then at rear
5. Screw down sun visors and counter supports
6. Install brake light cover
7. Secure edge protection of all doors at headlining
8. Add final details to vehicle
