51 44 180 Removing and installing/replacing make-up mirror in rear cabin

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Carefully lever out make-up mirror (1) with special tool 00 9 317 in direction of arrow.

Disconnect plug connection behind and remove make-up mirror (1).

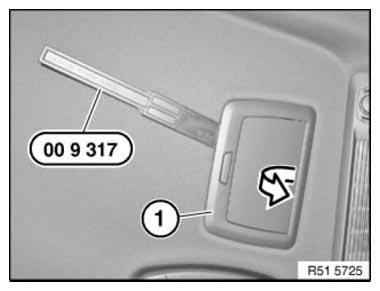

Fig 1: Removing Make-Up Mirror Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure guides (1) and catches (2) are correctly seated.

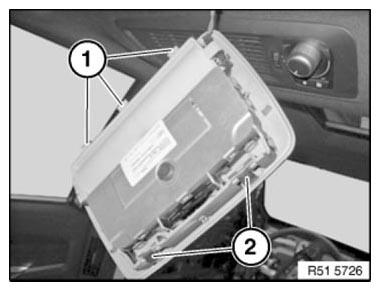

Fig 2: Identifying Guides And Catches

Courtesy of BMW OF NORTH AMERICA, INC.
