51 72 010 Replacing edge protection for left or right rear door
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.
Necessary preliminary tasks:
- Remove TRIM ON C-PILLAR AT BOTTOM
- Remove TRIM PANEL FOR DOOR PILLAR (bottom)

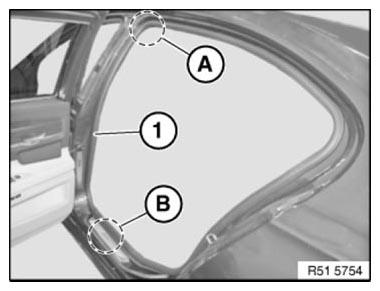

Detach edge protection (1).
Installation note:
Install edge protection (1) starting in area "A".
When installed, the location of joint of edge protection (1) must be in area "B".
Pull off mounting cord starting in area "B".
