51 22 360 Replacing seal for door gap/roof frame on left or right rear door

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

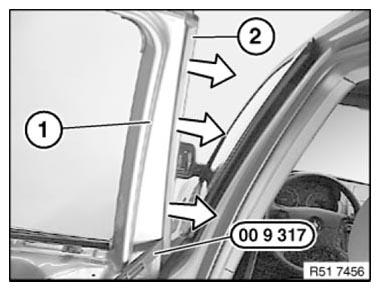

Lever out seal (2) on door window frame at front (1) with special tool 00 9 317 .

Fig 1: Removing Front Door Window Frame Seal Using Special Tool (00 9 317)

G08471906

Courtesy of BMW OF NORTH AMERICA, INC.

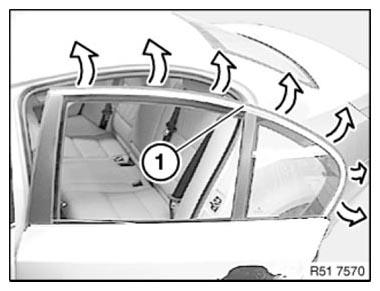

Pull off seal (1) beginning at the front toward the rear.

Installation note:

Thread in seal (1) in window frame first on the inside and then on the outside.

Fig 2: Pulling Door Window Frame Seal

G08471907

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Vehicle type Touring only:

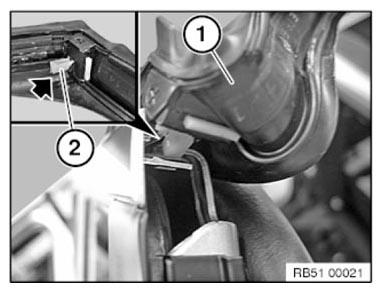

Feed in the plastic lug (2) of the seal (1) correctly at the top rear window frame corner.

Fig 3: Locating Seal Plastic Lug

G08471908

Courtesy of BMW OF NORTH AMERICA, INC.

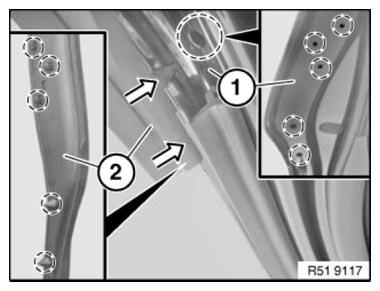

Unclip seal (2) from inside door leaf (1) at bore holes.

Fig 4: Removing Inside Door Leaf Seal

G08471909

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Moisten seal with water for easier mounting.
