51 34 160 Remove and install/replace cover on side window frame (rear door) at inside left or right

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Open side window
Remove rear DOOR TRIM PANEL
With roller sunblind optional equipment only:

Remove ROLLER SUNBLIND ON SIDE WINDOW

NOTE: Cover on window frame (1+2) is two-piece.

Not for roller sunblind optional equipment:

Unclip cover on window frame (2) in direction of arrow and remove.

Installation note:

Clip cover on window frame (2) at top neatly to cover on window frame (1).

Pull out cover on window frame (1) downwards in direction of arrow first, then take it off completely.

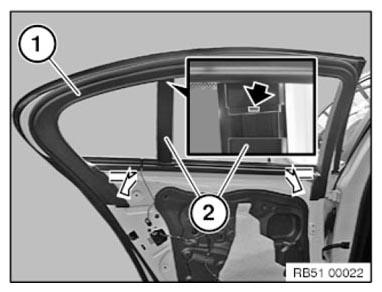

Fig 1: Pulling Window Frame Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Feed cover on window frame (2) neatly into the gap of the rubber window seal (1).

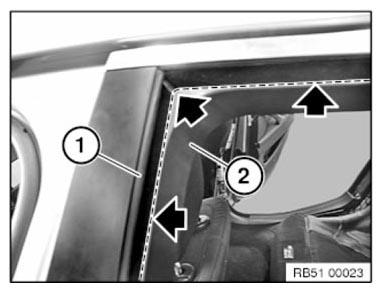

Fig 2: Locating Gap Between Window Frame And Rubber Window Seal

Courtesy of BMW OF NORTH AMERICA, INC.
