51 34 191 Replacing left or right fixed door window in rear window frame

Necessary preliminary tasks:

• Remove DECORATIVE STRIP ON WINDOW FRAME  of rear door
• Remove COVER ON DOOR WINDOW FRAME
• Remove WINDOW CAVITY COVER STRIP  on inside of rear door

Version with roller sun blind only:

• Remove ROLLER SUN BLIND

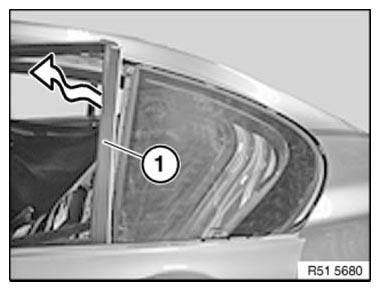

Partially pull rubber guide (1) out of side window guide.

Release screws underneath in window guide.

Tightening torque: 51 35 5AZ .

Fig 1: Removing Rubber Window Guide

Courtesy of BMW OF NORTH AMERICA, INC.

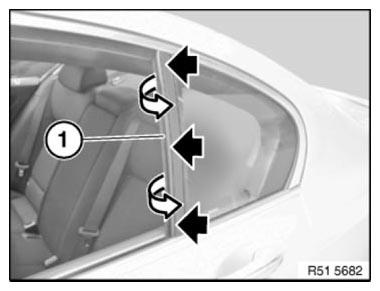

Feed guide rail (1) out of door structure.

Fig 2: Removing Door Structure Rail

Courtesy of BMW OF NORTH AMERICA, INC.

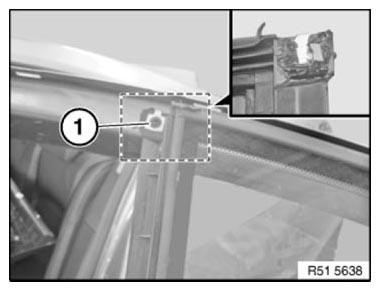

Release screw (1).

Replacement only:

Apply butyl from rear in screwing area.

Fig 3: Identifying Butyle Applying Areas On Screw

Courtesy of BMW OF NORTH AMERICA, INC.

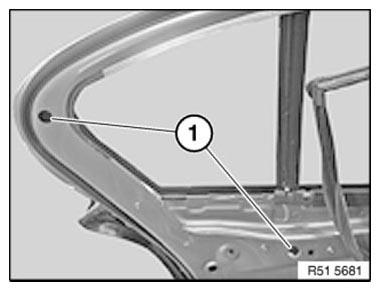

Release screws (1).

Tightening torque: 51 35 3AZ .

Fig 4: Identifying Rear Window Screws

Courtesy of BMW OF NORTH AMERICA, INC.

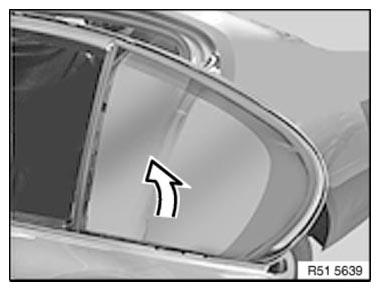

Carefully remove door window glass.

Fig 5: Removing Door Window Glass

Courtesy of BMW OF NORTH AMERICA, INC.
