51 35 001 Removing and installing / replacing gearbox for the roller sun blind of left or right rear door

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Retract the roller sunblind
Remove DOOR TRIM PANEL
Remove the WEATHER STRIP ON THE INSIDE of the triangle window

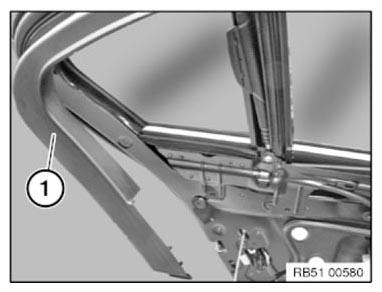

Partially loosen the cover for the window frame (1).

Fig 1: Identifying Window Frame

G08472118

Courtesy of BMW OF NORTH AMERICA, INC.

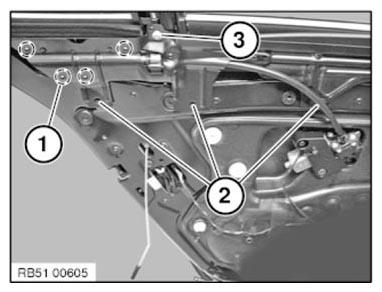

Unfasten screws (1) to (3).

Tightening torque 51 16 18AZ .

Fig 2: Identifying Door Screws

G08472119

Courtesy of BMW OF NORTH AMERICA, INC.

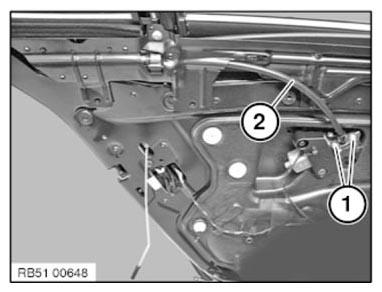

Release screws (1).

Pull the Flex shaft (2) out.

Fig 3: Identifying Flex Shaft And Screws

G08472120

Courtesy of BMW OF NORTH AMERICA, INC.

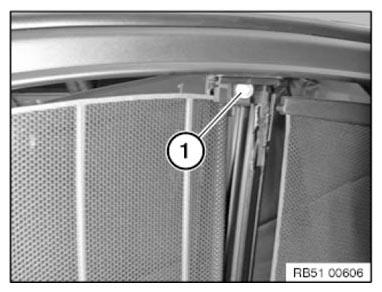

Slacken bolt (1).

Fig 4: Identifying Door Bolt

G08472121

Courtesy of BMW OF NORTH AMERICA, INC.

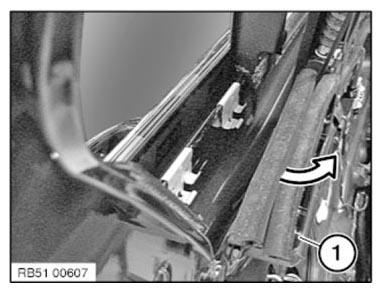

Swivel the gearbox (1) to the side.

Fig 5: Removing Gearbox

G08472122

Courtesy of BMW OF NORTH AMERICA, INC.

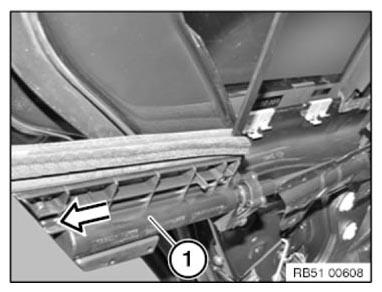

Pull the gearbox (1) off in direction of arrow.

Fig 6: Pulling Gearbox

G08472123

Courtesy of BMW OF NORTH AMERICA, INC.

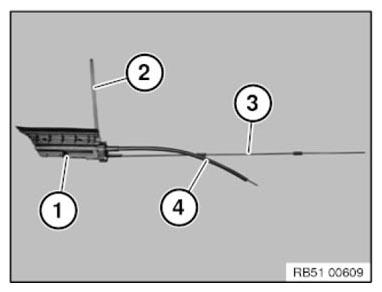

Installation note:

Pivot arm (2) must be vertical.

Feed in gearbox (1) with pivot arm (2), radial shaft axle (3) and Flex shaft (4).

Radial shaft axle (3) must be seated correctly in the gearing.

Fig 7: Identifying Pivot Arm, Gearbox, Flex Shaft And Radial Shaft Axle

G08472124

Courtesy of BMW OF NORTH AMERICA, INC.
