51 22 330 Removing and installing/replacing window cavity cover strip on inside rear door

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: The "INSTRUCTIONS ON FITTING WINDOW GUIDE SEALS" serve as the basis for this repair instruction and must be observed without fail.

Necessary preliminary tasks:

Remove REAR DOOR TRIM PANEL

Pull front window cavity cover strip (1) off rear door.

Installation:

Moisten window cavity cover strip (1) prior to fitting with APPROVED LUBRICANT .

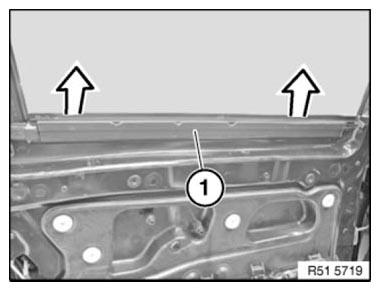

Fig 1: Pulling Front Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Pull rear window cavity cover strip (1) off rear door.

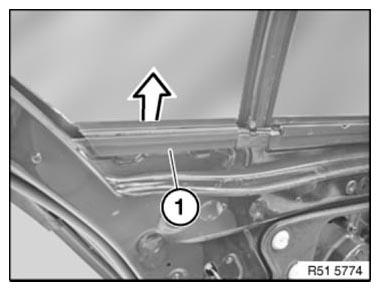

Fig 2: Pulling Rear Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.
