51 16 195 Removing and installing (replacing) center armrest

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove CENTRE ARMREST STORAGE COMPARTMENT
Remove SIDE TRIM PANEL ON CENTRE CONSOLE ON LEFT/RIGHT

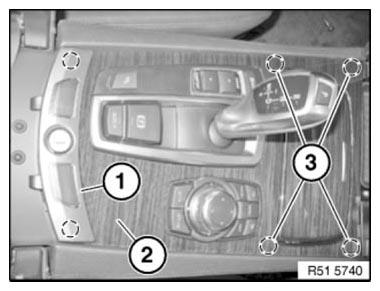

Unclip fastener trim (1).

Release screws underneath.

Unclip center console trim (2) at points (3) and remove.

IMPORTANT: Do not disconnect plug connections behind.

Fig 1: Identifying Center Console Trim And Fastener Trim

G08471721

Courtesy of BMW OF NORTH AMERICA, INC.

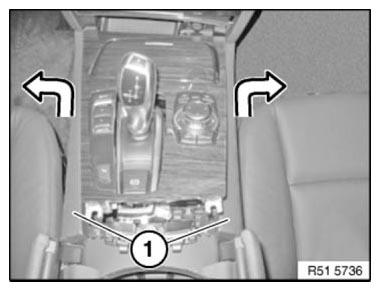

Remove trims (1) on left/right in direction of arrow.

Fig 2: Removing Left/Right Trims

G08471722

Courtesy of BMW OF NORTH AMERICA, INC.

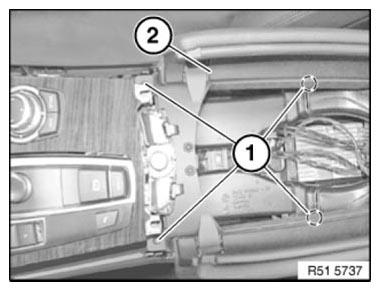

Release screws (1) on center armrest (2).

Fig 3: Identifying Centre Armrest And Screws

G08471723

Courtesy of BMW OF NORTH AMERICA, INC.

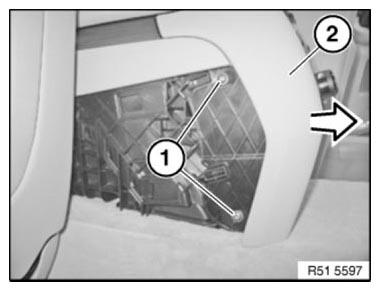

Release screws (1) on left and right sides.

Pull out rear center console trim (2) in direction of arrow.

IMPORTANT: Do not disconnect plug connections behind.

Fig 4: Removing Rear Centre Console Trim

G08471724

Courtesy of BMW OF NORTH AMERICA, INC.

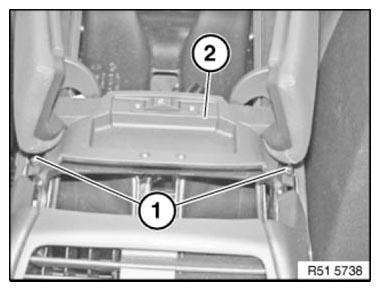

Release screws (1) and remove center armrest (2) in upward direction. Disconnect plug connection underneath.

Fig 5: Identifying Centre Armrest And Screws

G08471725

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Replace HOTEL SETTING SWITCH
