51 16... Removing and installing/replacing side trim panels on center console on left or right

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Release screw (1).

Slide trim panel (2) in direction of arrow and remove.

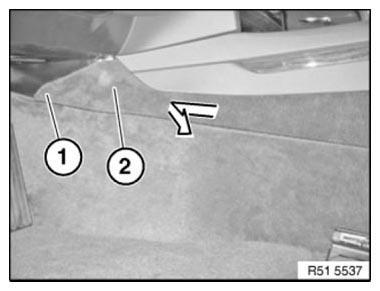

Fig 1: Sliding Trim Panel
G08471803Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retainers (1) must be correctly seated in panel guides (2).

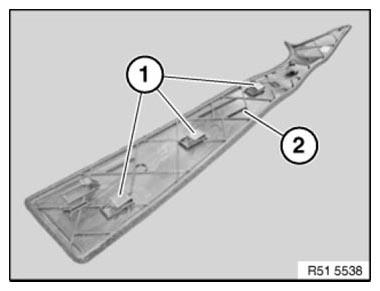

Fig 2: Identifying Retainers And Panel Guides
G08471804Courtesy of BMW OF NORTH AMERICA, INC.

Feed side carpet (1) towards front out of center console.

Installation note:

Replace faulty retainers (2).

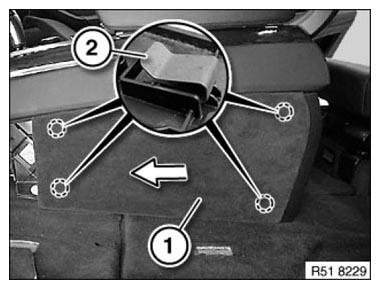

Fig 3: Feeding Centre Console Side Carpet
G08471805Courtesy of BMW OF NORTH AMERICA, INC.
