51 16 172 Removing and installing/replacing center armrest storage compartment
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

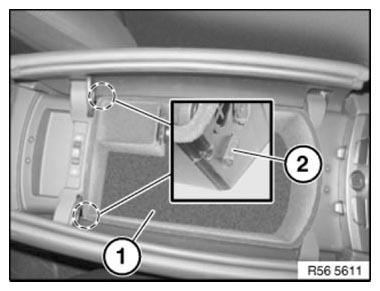

Unlock center armrest storage compartment (1) with a suitable tool at points (2) and raise slightly.
Unlock and disconnect plug connections behind.
Remove center armrest storage compartment (1).
Replacement:
- Remove LED FOR CENTRE ARMREST STORAGE COMPARTMENT
- Remove USB/AUDIO INTERFACE CONNECTING SOCKET
- Remove EJECT BOX
