51 16 229 Removing and installing/replacing lower rear center console trim

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove CENTRE CONSOLE TRIM

Unclip lower rear center console (1) first and top then at bottom from center console trim (2).

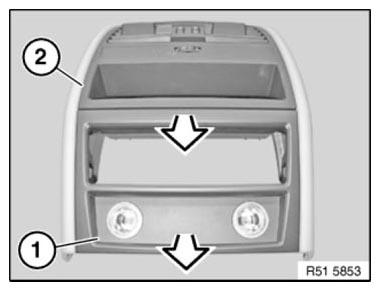

Fig 1: Removing Lower Rear Centre Console

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Correctly clip lower rear center console (1) at all four points into center console trim (2).

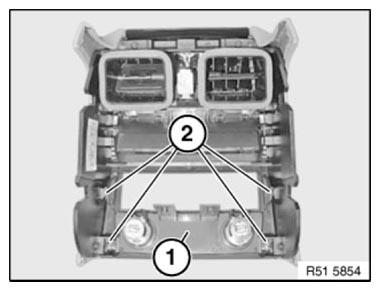

Fig 2: Identifying Lower Rear Centre Console And Centre Console Trim

Courtesy of BMW OF NORTH AMERICA, INC.
