51 16 040 Removing and installing/replacing housing on left or right exterior mirror: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove RETAINING RING ON EXTERIOR MIRROR
Remove PROTECTIVE CAP ON EXTERIOR MIRROR
Remove MIRROR ADJUSTMENT DRIVE

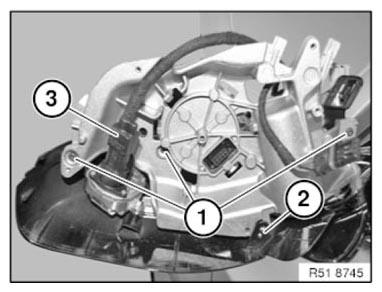

Release screws (1).

If necessary, disconnect the connector (3) from the Top View camera.

Installation note:

Ensure latch mechanism (2) is correctly seated.

Fig 1: Removing Latch Mechanism, Connector And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

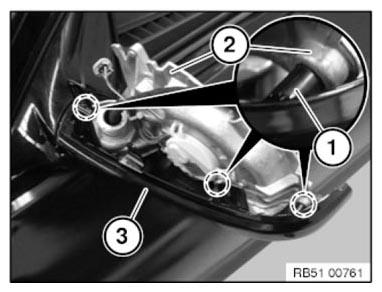

Carefully loosen screw holes (1) from exterior mirror (2).

Feed out housing (3) downward.

Fig 2: Identifying Exterior Mirror, Housing And Holes

Courtesy of BMW OF NORTH AMERICA, INC.

Catches (1) and screw holes (2) on housing (3) must not be damaged.
