51 16 045 Removing and installing/replacing retaining ring on left or right exterior mirror (up to 07/12)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove MIRROR GLASS

Release screws (1).

Carefully bend exterior mirror protective cap outwards and carefully unclip retaining ring (2).

Latch mechanisms on retaining ring (2) and retaining lugs on protective cap must not be damaged in the process.

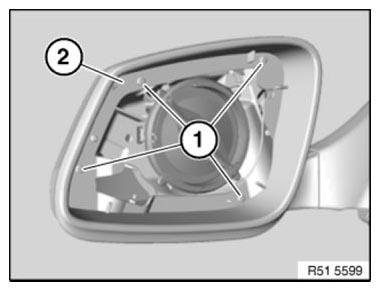

Fig 1: Identifying Retaining Ring And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Version with lane change warning:

Also unlock and disconnect plug connection (1) for optical signal transmitter (2).

Remove retaining ring (3).

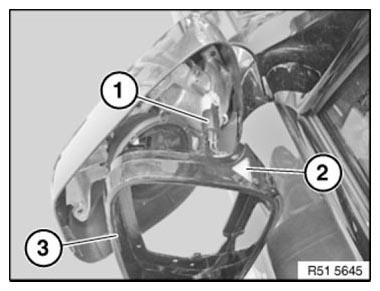

Fig 2: Identifying Plug Connection, Optical Sensor And Retaining Ring

Courtesy of BMW OF NORTH AMERICA, INC.
