51 16 041 Removing and installing/replacing cover cap on left or right exterior mirror

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Necessary preliminary tasks:

Remove MIRROR GLASS

Release cover cap (2) at catches (1) using suitable tool (3).

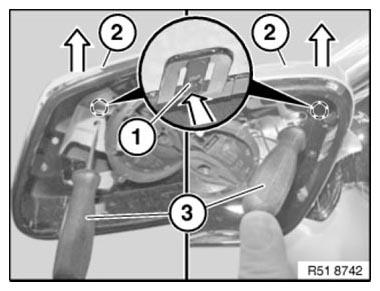

Fig 1: Releasing Cover Cap Using Suitable Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Secure cover cap (2) against falling off.

Release catch (1) using special tool 00 9 317 and carefully pull cover cap (2) upwards and remove.

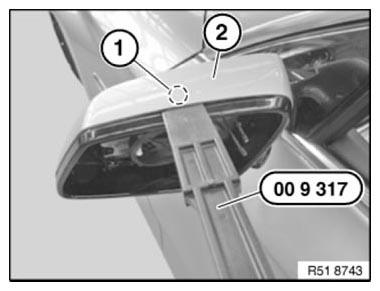

Fig 2: Releasing Catch Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Catches (1) and guides (2) on cover cap (3) must not be damaged.

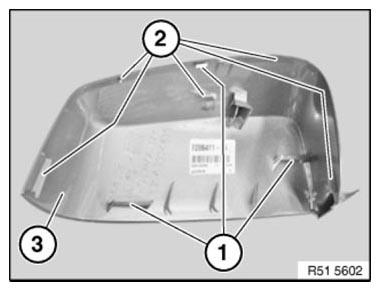

Fig 3: Identifying Catches, Guides And Cover Cap

Courtesy of BMW OF NORTH AMERICA, INC.
