51 45 460 Removing and installing/replacing upper instrument panel storage compartment
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove DECORATIVE STRIP ON INSTRUMENT PANEL ON RIGHT
- Remove DECORATIVE STRIP ON STORAGE COMPARTMENT/DVD CHANGER INSTRUMENT PANEL
- Remove DECORATIVE STRIP ON INSTRUMENT PANEL IN MIDDLE
- With DVD changer fitted:
- Clamp off BATTERY NEGATIVE LEAD

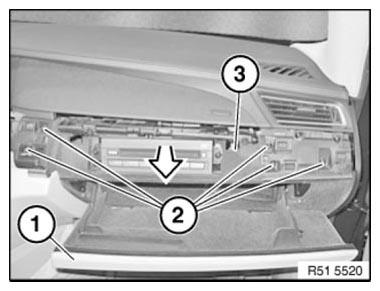

Open glove box (1).
Release screws (2) on upper instrument panel storage compartment (3).
Pull out upper instrument panel storage compartment (3) towards front.
If necessary, unlock and disconnect plug connection for DVD changer.
Remove upper instrument panel storage compartment (3).
Replacement:
If necessary, remove CD CHANGER .
