51 45 385 Removing and installing/replacing middle decorative strip on dashboard
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
IMPORTANT:
Risk of damage!
A hard disk is installed in the Car Information Computer (CIC).
Carry out mechanical work on the CIC and adjacent components with care.
Avoid subjecting the CIC to vibration/shocks.
Necessary preliminary tasks:

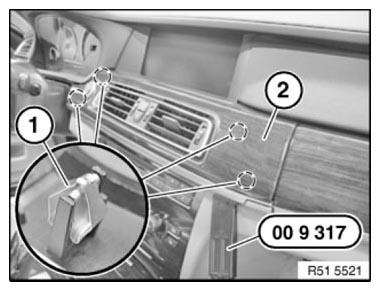

Unclip decorative strip (2) at marked points with special tool 00 9 317 .
If necessary, replace faulty clamps (1).
Unlock and disconnect plug connections behind decorative strip (2) - for Start/Stop, hazard warning flashers/central locking and lid control.
Remove decorative strip (2).
