51 45 380 Removing and installing/replacing right decorative strip on instrument panel

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Unclip decorative strip (1) at the side using special tool 00 9 317 .

Installation:

If necessary, replace faulty clips (2) on back of decorative strip (1).

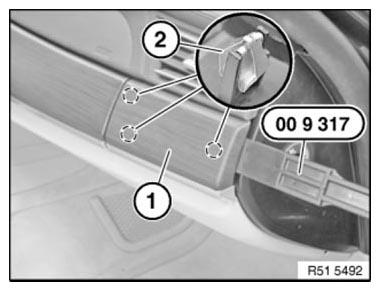

Fig 1: Removing Side Decorative Strip Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.
