Solenoid valves, cylinders 7-12

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

NOTE: Top solenoid valve (4) controls the exhaust adjustment unit.

Bottom solenoid valve (2) controls the inlet adjustment unit.

Unlock plug connections of solenoid valves (2 and 4) and disconnect.

Installation:

Plug connections must snap audibly into place!

Fig 1: Identifying Solenoid Valve With Plug Connections
G08469448Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (1 and 3).

Tightening torque: see 3AZ in 11 36 VARIABLE CAMSHAFT CONTROL

Pull out solenoid valves.

Installation:

Replace O-rings (1 and 2) on solenoid valve  .

Installation:

To install solenoid valves, coat both O-rings with engine oil.

If the solenoid valve is to be reused, the filter strainer (see arrow in illustration) must be cleaned.

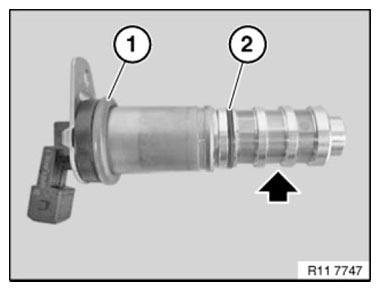

Fig 2: Identifying Solenoid Valve O-Rings
G08469449Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: If a filter element is clogged with dirt, the filter element (filter strainer) may be removed.

Release filter elements (1) at contact edges.

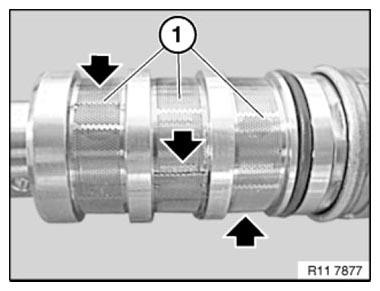

Fig 3: Identifying Filter Elements
G08469450Courtesy of BMW OF NORTH AMERICA, INC.

Bend open welding spots on filter element (1) with a screwdriver (2) in direction of arrow until welding spots are opened.

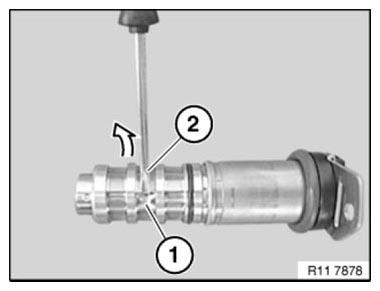

Fig 4: Bending Open Welding Spots On Filter Element Using Screwdriver
G08469451Courtesy of BMW OF NORTH AMERICA, INC.

Avoid damaging, e.g. notches or scratches, the solenoid valve housing (see arrows in illustration).

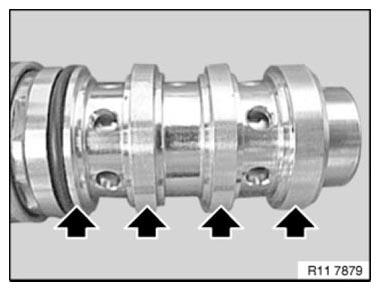

Fig 5: Locating Solenoid Valve Housing Surface
G08469452Courtesy of BMW OF NORTH AMERICA, INC.

Gently insert solenoid valves as far as stop.

Ensure correct installation position.

Insert screws (1 and 3) and tighten down.

Tightening torque: see 3AZ in 11 36 VARIABLE CAMSHAFT CONTROL

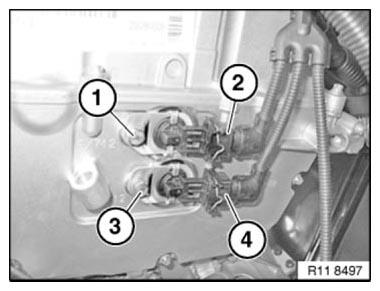

Fig 6: Identifying Solenoid Valve With Plug Connections
G08469453Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Delete fault memory.

Check function of DME control unit.
