11 12 106 Removing and installing right cylinder head (N74)

Necessary preliminary tasks:

• Check TIMING .
• Remove INTAKE AND EXHAUST ADJUSTMENT UNIT ON RIGHT SIDE .
• Remove COOLANT THERMOSTAT

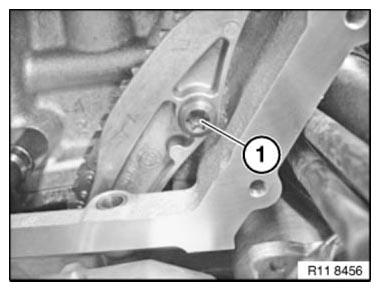

Release bolt (1) on top guide rail.

Fig 1: Identifying Top Guide Rail Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

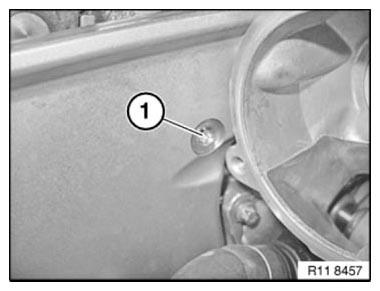

Release bolt (1) on bottom guide rail.

Fig 2: Identifying Bottom Guide Rail Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove chain tensioner (2).

Fig 3: Removing Chain Tensioner

Courtesy of BMW OF NORTH AMERICA, INC.

Release cylinder head screws at front of cylinder head.

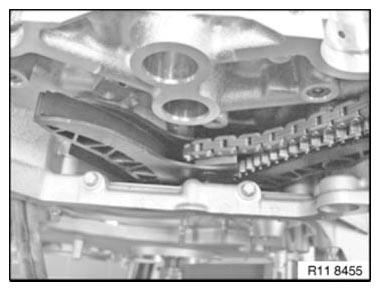

Fig 4: Identifying Chain Tensioner Arm

Courtesy of BMW OF NORTH AMERICA, INC.

Release cylinder head bolts in sequence (14 to 1).

Remove all cylinder head bolts with washers.

Remove cylinder head with assistance of a second person (weight approx. 30 kg).

Remove ventilation line with cylinder head.

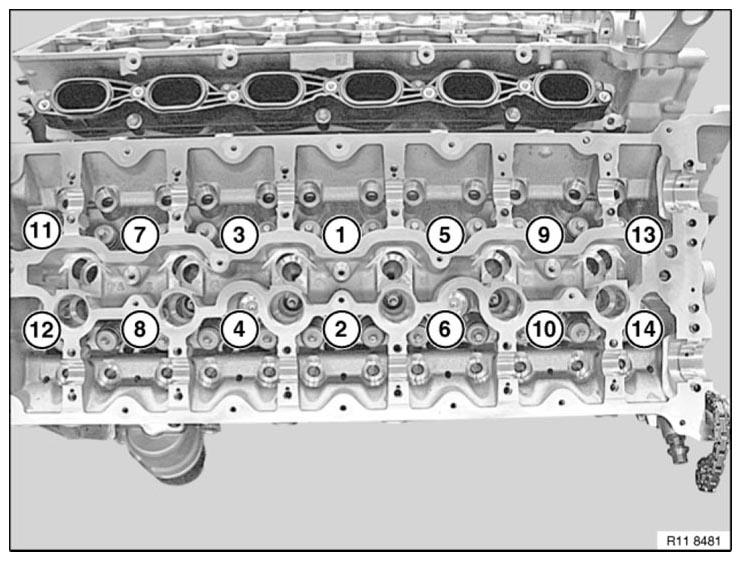

Fig 5: Identifying Cylinder Head Bolts Releasing Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Clean sealing faces of cylinder head and engine block; if necessary, remove gasket debris compound with special tool 11 4 470 . Make sure no gasket remnants drop into oil and cooling channels.

Fig 6: Locating Sealing Face Of Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

Threaded bores in engine block must be free of dirt and oil

Check CYLINDER HEAD FOR LEAKS .

Check CYLINDER HEAD SEALING FACE  for surface evenness.

Coat joint between engine block and timing case cover with Drei Bond 1209  (refer to BMW Parts Service).

Coat joint between engine block and timing case cover with Drei Bond 1209 (refer to BMW Parts Service).

Fig 7: Locating Drei Bond Applying Area

Courtesy of BMW OF NORTH AMERICA, INC.

Check dowel sleeves (1) for damage and correct installation position.

Installation:

Replace cylinder head gasket  .

Fit new cylinder head gasket (2).

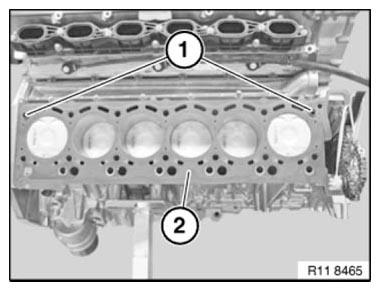

Fig 8: Identifying Cylinder Head Gasket And Dowel Sleeves

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Join tensioner rails together using appropriate tool and insert timing chain.

Fit cylinder head with ventilation line.

Do not wash off bolt coating.

Fit new cylinder head screws  .

Insert new cylinder head bolts and initially tighten so that they are free of play.

Tighten down cylinder head bolts in sequence 1 - 14.

Tightening torque: see 1AZ in 11 12 CYLINDER HEAD WITH CYLINDER HEAD COVER

Fig 9: Identifying Cylinder Head Bolts Releasing Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

To make it easier to check angle tightening, mark all collar bolts M11 using an oil-proof marker pen (see illustration).

Fig 10: Identifying Mark On Collar Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Insert and tighten down screws between cylinder head and timing case cover.

Tightening torque: see 2AZ in 11 12 CYLINDER HEAD WITH CYLINDER HEAD COVER

Fig 11: Identifying Chain Tensioner Arm

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolt (1) on top guide rail.

Tightening torque: see 4AZ in 11 31 CAMSHAFT

Fig 12: Identifying Top Guide Rail Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolt (1) on bottom guide rail.

Installation:

Replace O-ring.

Tightening torque: see 1AZ in 11 31 CAMSHAFT

Fig 13: Identifying Bottom Guide Rail Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, install camshafts. See RIGHT INTAKE CAMSHAFT  and RIGHT EXHAUST CAMSHAFT .

Install INTAKE AND EXHAUST ADJUSTMENT UNIT ON LEFT SIDE .

Assemble engine.
