11 12 729 Checking cylinder head for water leaks (N74)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

NOTE: Set of special tools 11 6 221 can be used for cylinder bank 1 to 6 and cylinder bank 7 to 12.

Position special tool 11 6 221 on cylinder head.

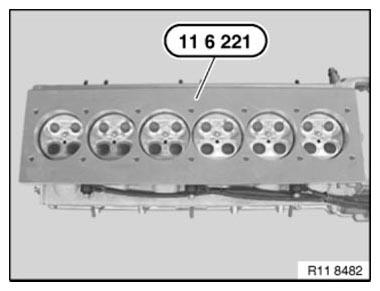

Fig 1: Positioning Special Tool 11 6 221 On Cylinder

G08469100

Courtesy of BMW OF NORTH AMERICA, INC.

Special tool 11 6 222 allows the original cylinder head bolts (1) to be used to secure the pressure plate 11 6 221 .

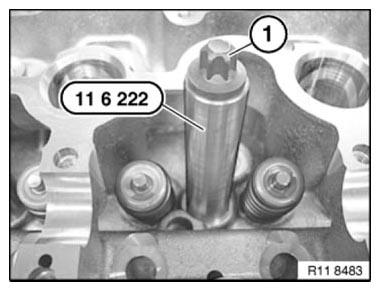

Fig 2: Securing Cylinder Head Bolts To Pressure Plate Using Special Tool 11 6 222

G08469101

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Cylinder Head Bolts Tightening/Loosening Sequence

G08469102

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 11 8 083 and tighten in sequence (1 to 14) in several steps.

Tightening torque: 15 Nm

Remove bleeder screw (1).

Tightening torque: see 8AZ in 11 12 CYLINDER HEAD WITH CYLINDER HEAD COVER

Installation:

Replace sealing ring.

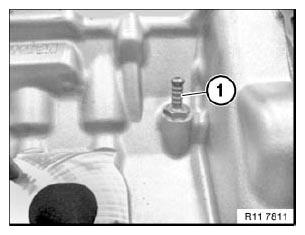

Fig 4: Identifying Bleeder Screw

G06178423

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Max: 0.8 Nm.

Screw in special tool 11 8 082 with suitable tool and special tool to 0.8 Nm.

Connect compressed air hose with pressure gauge.

Immerse cylinder head in a water bath. Test pressure: 3.0 bar.

Check cylinder head for escaping air (cracks).

NOTE: Illustration shows N63.

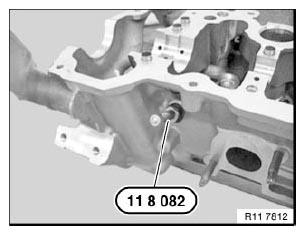

Fig 5: Screwing Special Tool 11 8 082

G06178424

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: If necessary, add cleaning agent to water bath.

Assemble engine.
