64 52 524 Removing and installing/replacing A/C system compressor (N74): Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of injury!
Refrigerant circuit is under high pressure!
Follow safety precautions when handling refrigerant. See safety instructions for HANDLING R 134A REFRIGERANT , HANDLING TETRAFLUORETHANE REFRIGERANT R134A , and HANDLING REFRIGERANT OIL .
Avoid contact with refrigerant and refrigerant oil.

IMPORTANT: Risk of damage!
Restart engine only when A/C system has been correctly filled.

Read and comply with NOTES on replacing compressor.

Follow INSTRUCTIONS for opening and replacing parts in refrigerant circuit.

If air conditioning system is opened for more than 24 hours:

Replace DESICCANT INSERT for A/C system.

Necessary preliminary tasks:

DRAIN OFF AIR CONDITIONING SYSTEM
Remove DRIVE BELT FOR ALTERNATOR
Remove air conditioning COMPRESSOR DRIVE BELT

Up to build date 07/2012:

Remove hydraulic steering gear. See HYDRAULIC STEERING GEAR or ACTIVE FRONT STEERING HYDRAULIC STEERING GEAR .

Version from 07/2012:

Remove the electrical steering box. See ELECTRIC STEERING BOX (EPS) or ELECTRICAL STEERING BOX ACTIVE STEERING .

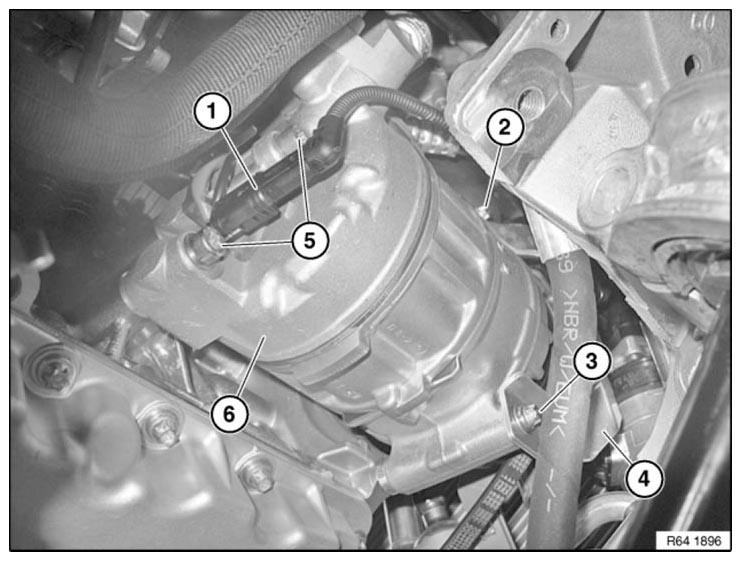

Unfasten plug connection (1) and disconnect.

NOTE: Screws of varying lengths are installed.

Loosen screw (2).

(Observe instructions for releasing the screw (2) in the work step below!)

Release screws (3) and (5).

Tightening torque 64 52 3AZ .

Remove air conditioning compressor (6) holder (4).

Lower the compressor (6).

Installation note:

Place holder (4) on compressor and secure with screw (2).

Tighten screws (5) and (6).

Fig 1: Identifying Air Conditioning Compressor Components

Courtesy of BMW OF NORTH AMERICA, INC.

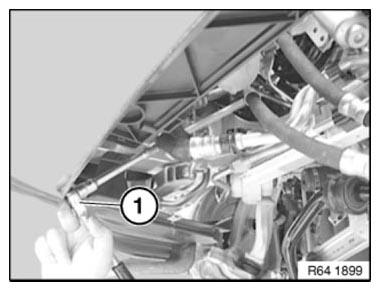

Place tool (1) with extension and joint in the front bumper area as illustrated.

Release screw.

Fig 2: Placing Tool With Extension And Joint In Front Bumper Area

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Seal openings or lines on compressor with special tool 32 1 270 to prevent escape of media and dirt contamination.

IMPORTANT: Secure compressor against falling out.

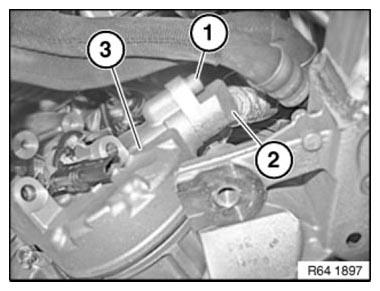

Release screw (1).

Tightening torque 64 52 1AZ .

Remove low pressure line connection (2).

Feed out compressor (3) along with high pressure line.

Installation note:

Fig 3: Identifying Screw, Low Pressure Line Connection And Compressor

Courtesy of BMW OF NORTH AMERICA, INC.

Replace sealing rings.

Use special tool 00 9 030 to mount sealing rings without damaging them.
