32 41 440 Replacing suction line from oil reservoir to hydraulic pump N74: Notes

Recycling:

Catch and dispose of hydraulic fluid in a suitable collecting vessel.

Necessary preliminary tasks:

• Draw off and dispose of hydraulic fluid from oil reservoir
• Remove left INTAKE SILENCER HOUSING
• Remove LEFT INTAKE PORT
• Remove front UNDERBODY PROTECTION
• Remove STIFFENING PLATE
• Remove EPS STEERING GEAR .

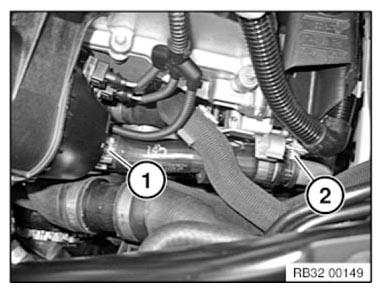

Unfasten hose clamp (1) on oil reservoir.

Release screw on holder (2).

Detach intake pipe from fluid reservoir.

Installation note:

Marks on fluid reservoir and intake pipe must match up.

Replace hose clamp.

Fig 1: Identifying Hose Clamp And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

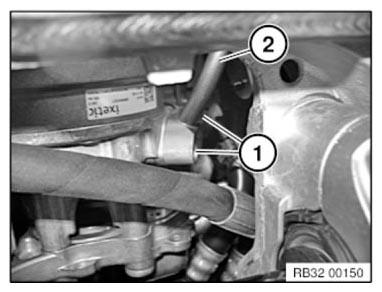

Release screws (1) on hydraulic pump and detach line (2).

Installation note:

Replace sealing ring.

Tightening torque 37 13 10 .

Fig 2: Identifying Hydraulic Pump Line And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

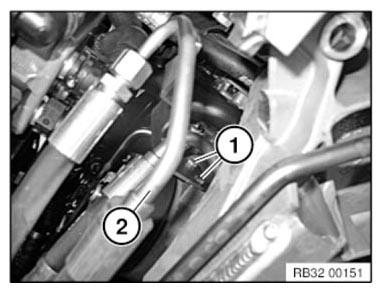

Release screws (1) from holder on hydraulic pump and lay line (2) to one side.

Tightening torque 32 41 16AZ .

Fig 3: Identifying Hydraulic Pump Line And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

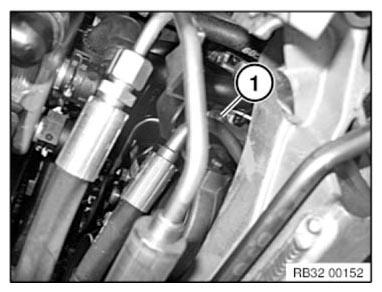

Release nut (1) from line clip on alternator from below.

Fig 4: Identifying Line Clip Nut

Courtesy of BMW OF NORTH AMERICA, INC.

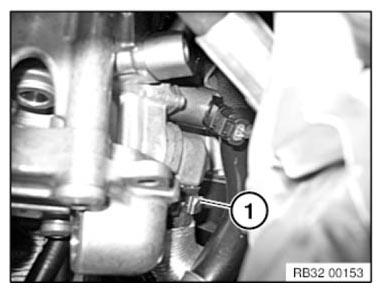

Release hose clamp (1) from below on hydraulic pump and detach intake pipe from power steering pump.

Carefully lift out complete intake pipe from engine compartment.

Installation note:

Replace hose clamp.

Marks on intake pipe and hydraulic pump must match up.

Make sure hydraulic lines are laid without tension and with sufficient distance to adjoining components.

Fig 5: Identifying Hose Clamp

Courtesy of BMW OF NORTH AMERICA, INC.
