Procedure, lane / camber adjustment (in design position)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

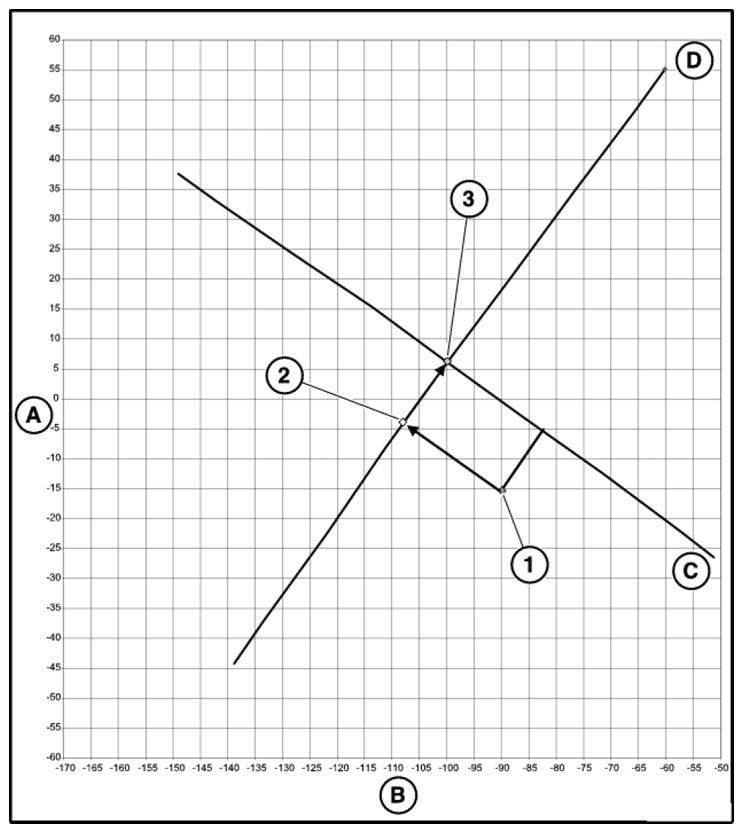

Fig 1: Lane / Camber Adjustment Graph (In Design Position)

Courtesy of BMW OF NORTH AMERICA, INC.

Unit of measurement in diagram: [min]

A	Toe	1	Actual value
B	Camber	2	Intermediate adjustment value
C	Toe / camber value adjustment by wishbone	3	Setpoint value in KO position
D	Toe / camber value adjustment by swinging arm

Description using the example value entered at the top of the diagram:

= Read off actual value (1) for toe/camber on wheel/axle alignment analyzer and enter in diagram
(in example: toe --15', camber --90')
= Drag parallel line to "Wishbone" line (C) through entered actual value (1)
= Point of intersection (2) on "Swinging arm" line (D) produces toe/camber intermediate adjustment value
(in example: toe -4', camber -108')
= Adjust intermediate adjustment value (2) by turning adjusting screw on wishbone
- Refer to ADJUSTING ON WISHBONE
Adjust setpoint value (3) for toe/camber by turning adjusting screw on swinging arm (toe/camber value moves on line (D))
- Refer to ADJUSTING ON SWINGING ARM
