Adjusting on swinging arm

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Replace nut (1) prior to adjustment and join to 5 Nm.

Turn eccentric bolt (2) to adjust setpoint value.

Tighten nut (1).

Tightening torque 33 32 2AZ .

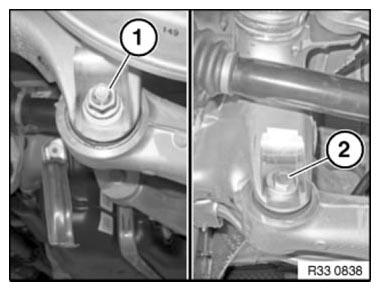

Fig 1: Identifying Swinging Arm Nut And Eccentric Bolt
G08470340Courtesy of BMW OF NORTH AMERICA, INC.
