Adjusting on wishbone

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Replace nut (1) prior to adjustment and join to 5 Nm.

Turn eccentric bolt (2) until intermediate adjustment value is obtained.

Tighten nut (1).

Tightening torque 33 32 8AZ .

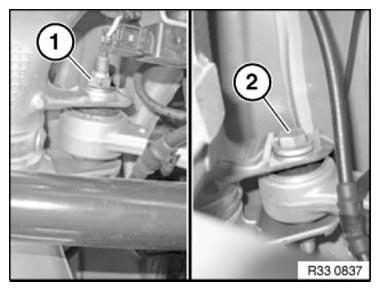

Fig 1: Identifying Wishbone Nut And Eccentric Bolt
G08470339Courtesy of BMW OF NORTH AMERICA, INC.
