51 35 001 Removing and installing / replacing gearbox for the roller sun blind of left or right rear door

Necessary preliminary tasks:

• Retract the roller sunblind
• Remove DOOR TRIM PANEL
• Remove the WEATHER STRIP ON THE INSIDE  of the triangle window

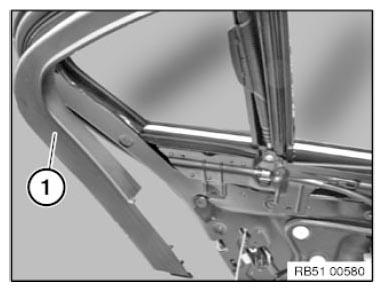

Partially loosen the cover for the window frame (1).

Fig 1: Identifying Window Frame

Courtesy of BMW OF NORTH AMERICA, INC.

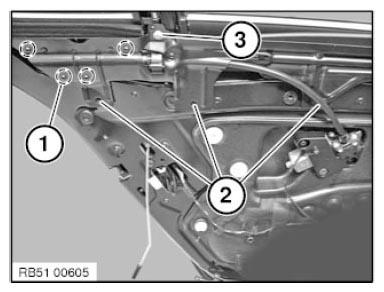

Unfasten screws (1) to (3).

Tightening torque 51 16 18AZ .

Fig 2: Identifying Door Screws

Courtesy of BMW OF NORTH AMERICA, INC.

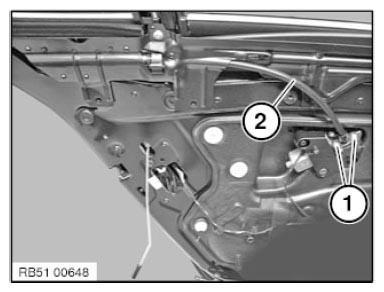

Release screws (1).

Pull the Flex shaft (2) out.

Fig 3: Identifying Flex Shaft And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

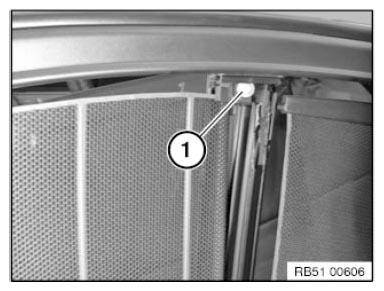

Slacken bolt (1).

Fig 4: Identifying Door Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

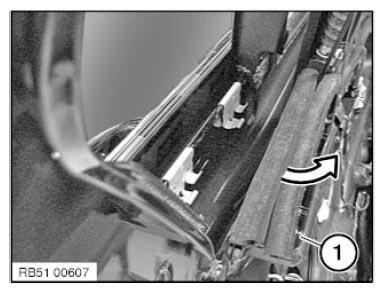

Swivel the gearbox (1) to the side.

Fig 5: Removing Gearbox

Courtesy of BMW OF NORTH AMERICA, INC.

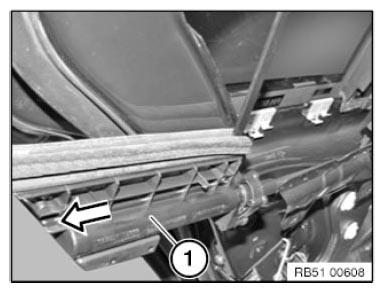

Pull the gearbox (1) off in direction of arrow.

Fig 6: Pulling Gearbox

Courtesy of BMW OF NORTH AMERICA, INC.

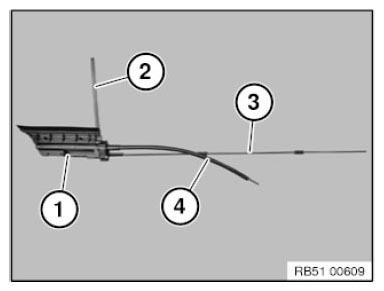

Installation note:

Pivot arm (2) must be vertical.

Feed in gearbox (1) with pivot arm (2), radial shaft axle (3) and Flex shaft (4).

Fig 7: Identifying Pivot Arm, Gearbox, Flex Shaft And Radial Shaft Axle

Courtesy of BMW OF NORTH AMERICA, INC.

Radial shaft axle (3) must be seated correctly in the gearing.
