51 22 330 Removing and installing/replacing window cavity cover strip on inside rear door

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: The "INSTRUCTIONS ON FITTING WINDOW GUIDE SEALS " serve as the basis for this repair instruction and must be observed without fail.

Necessary preliminary tasks:

Remove REAR DOOR TRIM PANEL

Pull front window cavity cover strip (1) off rear door.

Installation:

Moisten window cavity cover strip (1) prior to fitting with APPROVED LUBRICANT .

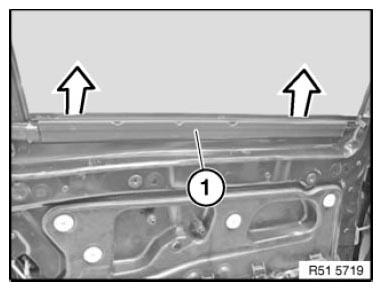

Fig 1: Pulling Front Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Pull rear window cavity cover strip (1) off rear door.

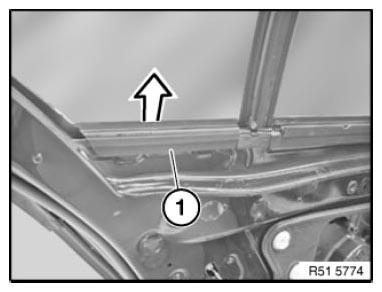

Fig 2: Pulling Rear Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.
