51 42 000 Remove and install left or right rear door trim panel

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove DECORATIVE STRIP ON DOOR TRIM PANEL of rear door.

Release screws (1).

Installation:

Tightening torque 51 42 1AZ .

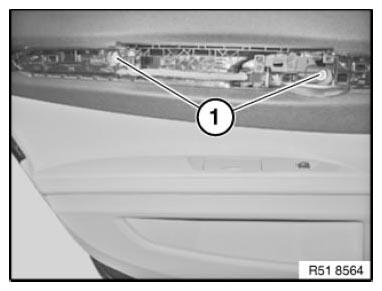

Fig 1: Identifying Rear Door Trim Panel Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip clips (1) 00 9 317 of door trim with special tool.

NOTE: Start unclipping at bottom. Damaged clips must be replaced.

Lift door trim panel out of holder.

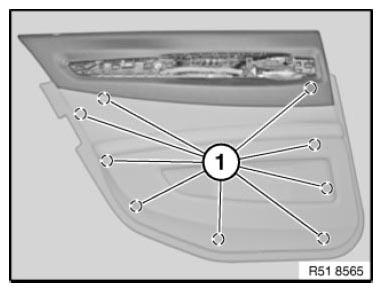

Fig 2: Identifying Rear Door Trim Panel Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage Bowden cable (1) for release lever first at counter support (2) and then at door lock (3).

Disconnect all plug connections and remove door trim panel.

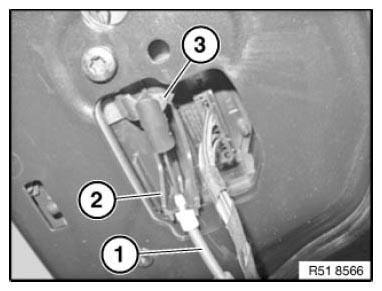

Fig 3: Identifying Bowden Cable, Counter Support And Door Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

After assembling the door trim panel proceed as follows:

Open side window
Lock with ignition key
Check for ease-of-movement on locking knob linkage
If necessary, align linkage
